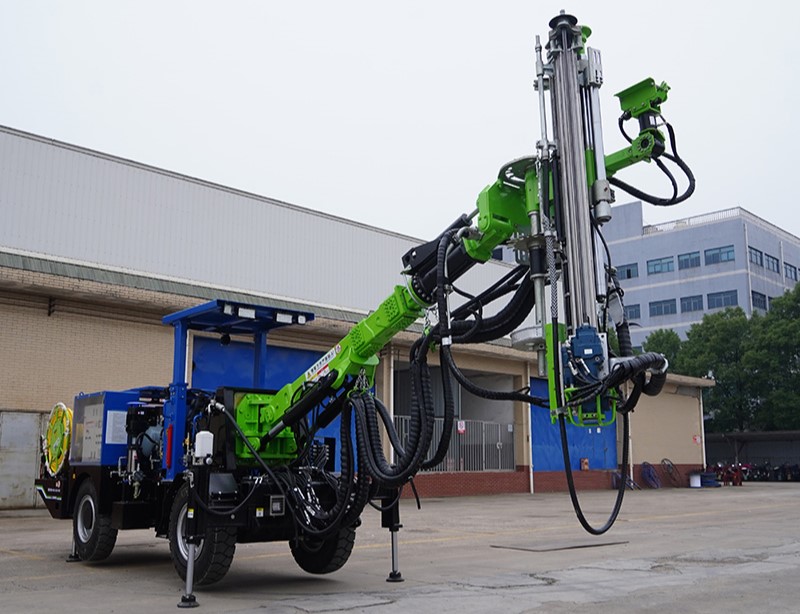

Anchor bolting jumbos, also known as anchor drill rigs or bolting rigs, are specialized pieces of underground construction equipment designed for drilling, installing, and tightening rock bolts. They are widely used in mining, tunneling, hydroelectric projects, slope stabilization, and other geotechnical applications. By providing efficient rock reinforcement, anchor bolting jumbos enhance structural safety and stability in challenging environments.

   1. A typical anchor bolting jumbo consists of several main systems:

   ①  Drilling Boom: A hydraulically controlled arm that allows precise positioning of the drilling tool at different angles and locations.

   ②  Drilling System: Equipped with a rock drill, rods, and bits capable of penetrating various rock formations.

   ③  Bolting System: Designed to insert and tighten bolts, nuts, or resin cartridges, depending on project requirements.

   ④  Hydraulic System: Powers the drilling and bolting functions, ensuring smooth and efficient operations.

   ⑤  Operator’s Cabin or Control Panel: Provides ergonomic controls, visibility, and sometimes automation for safer and more accurate operations.

   2. Functions of Anchor Bolting Jumbos

   ①  Rock Drilling: Create boreholes for bolts in underground or surface rock structures.

   ②  Bolt Installation: Insert rock bolts, anchors, or cable bolts into the drilled holes.

   ③  Resin/Grout Injection: In certain designs, resin or grout can be injected to secure bolts firmly.

   ④  Rock Reinforcement: Provide immediate support to prevent rockfalls, collapses, or instability.

   ⑤  Automation and Precision: Advanced jumbos are equipped with computerized control systems, enabling precise drilling patterns and reduced human error.

   3. Applications

   ①  Anchor bolting jumbos are highly versatile and play an essential role in geotechnical engineering:

   ②  Mining Industry: Support mine tunnels and galleries by stabilizing walls and ceilings.

   ③  Tunnel Construction: Reinforce tunnel linings during excavation to prevent collapses.

   ④  Hydropower Projects: Secure underground caverns and access tunnels for turbines and generators.

   ⑤  Slope Stabilization: Strengthen slopes in open-pit mines, highways, and dams to prevent landslides.

   ⑥  Foundations and Deep Excavations: Provide support for retaining walls and deep foundation pits in urban construction projects.

   4. Advantages of Anchor Bolting Jumbos

   ①  High Efficiency: Automated drilling and bolting significantly increase productivity compared to manual methods.

   ②  Safety: Reduce the risk of rockfalls and accidents by providing immediate reinforcement.

   ③  Flexibility: Capable of working in confined underground spaces or large-scale open projects.

   ④  Precision: Advanced positioning systems ensure accurate drilling and consistent bolt placement.

   ⑤  Durability: Built with robust materials to withstand harsh working conditions.

   ⑥  Cost-Effectiveness: Long-term reduction in maintenance costs and improved operational efficiency.

   Anchor bolting jumbos are indispensable in modern mining, tunneling, and geotechnical engineering. By combining powerful drilling capacity, automated bolt installation, and advanced safety features, they greatly improve construction efficiency and stability in challenging environments. As technology continues to evolve, next-generation anchor bolting jumbos will deliver even greater precision, safety, and sustainability for infrastructure and resource projects worldwide.
