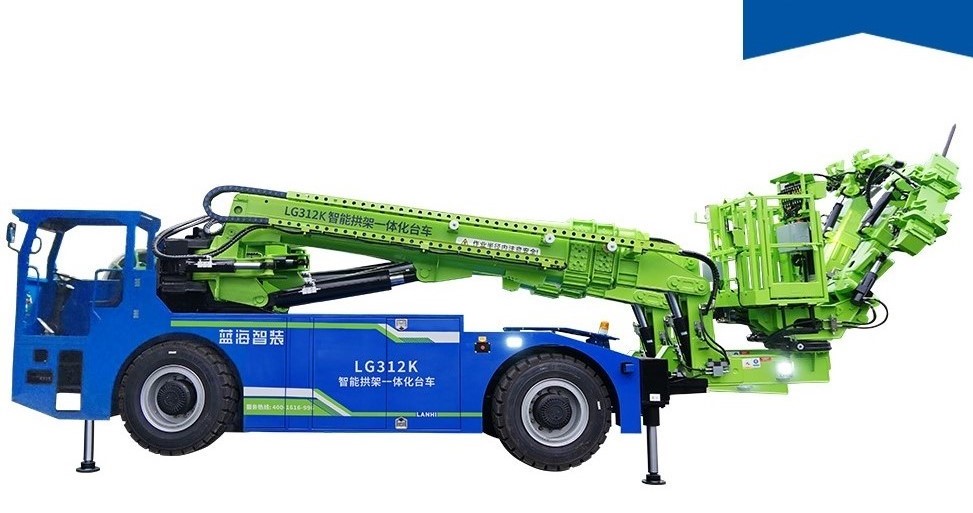

Lanhi's intelligent integrated arch-anchor trolley is an advanced piece of equipment utilizing an engineering chassis. Equipped with a dual anchor bolt system, it features four-wheel steering, four-wheel drive, and bidirectional driving capabilities. The equipment is equipped with a dual diesel-electric power system, enabling electric construction and diesel emergency operation. Its three-arm remote control system makes it perform exceptionally well in various tunnel construction scenarios, particularly suitable for precast arch frame installation and various bench-type operations.
The intelligent integrated arch-anchor trolley integrates multiple construction procedures, including surveying and marking, under-excavation, arch frame installation, anchor mesh installation, pre-support, system anchor bolt installation, and optional anchor bolt grouting. The three-arm, three-grip suspended platform structure allows the middle arm to achieve a maximum lifting capacity of 3 tons, enabling all frame erection procedures to be completed within one hour.
This equipment utilizes Lanhi's proprietary patented technology, offering two installation processes: multi-frame precast and multi-frame precast folding. These arch frames are fabricated outside the tunnel, effectively reducing hazardous work time and construction risks, and significantly improving construction efficiency. The equipment boasts a maximum drilling depth of 4.5 meters, and its left and right booms can simultaneously perform anchor bolting, system anchor bolting, and pre-anchor bolting operations, further enhancing construction flexibility and efficiency.
Furthermore, the intelligent arch-anchor integrated trolley is equipped with an expandable basket, providing greater operating space and facilitating the loading of explosives and anchor bolts. An optional grouting system allows for rapid grouting after anchor bolt installation. The entire operation requires only 3-4 people, compared to the typically 8 or more required by traditional methods.
The equipment also includes a hydraulic breaker and welding machine, enabling under-excavation and welding operations during arch frame installation. Its intelligent design incorporates cluster management, positioning functions, video monitoring, intercom functionality, early warning/alarm functions, data management, as well as tunnel BIM technology and digital twins, construction report management, tunnel outline scanning, and remote control. This integration significantly improves construction safety, efficiency, and management, making Lanhi's intelligent arch-anchor integrated trolley an ideal choice for modern tunnel construction.
