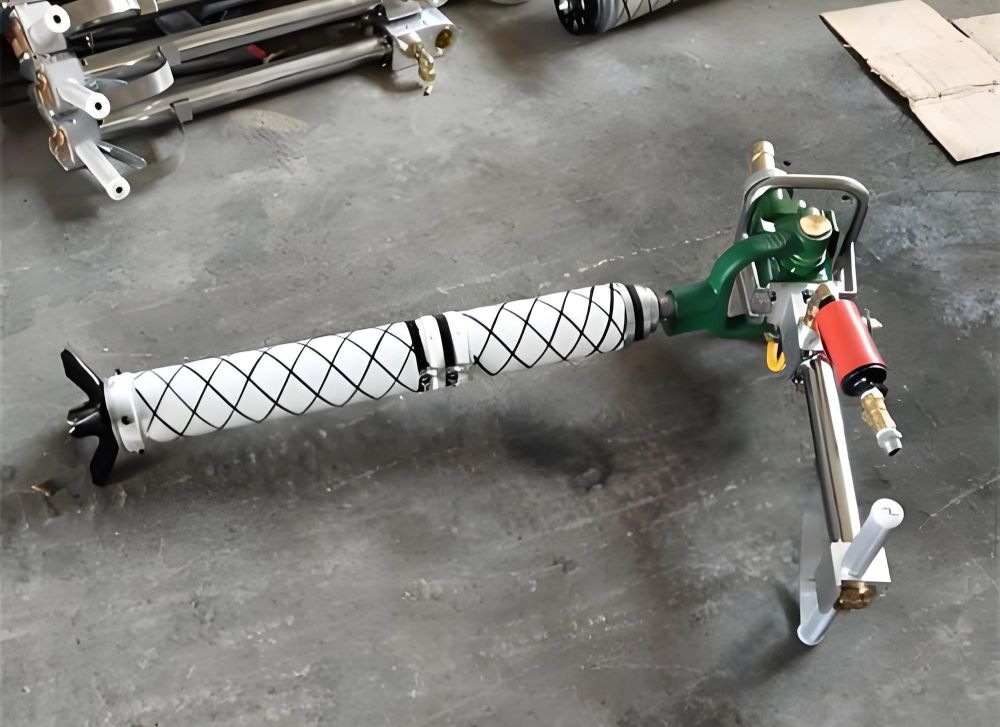

An outrigger anchor drill rig is a type of equipment commonly used for anchor support operations in coal mine tunnels. It features a small size, light weight, simple operation, and easy maintenance. This type of drill rig integrates drilling, mixing, and anchor cable installation, making it suitable for tunnels with a range of rock hardness.

   Structural Features of an Outrigger Anchor Drill Rig:

  1. Support Leg System: A key design feature of an outrigger anchor drill rig is its adjustable support legs, which allow it to be securely fixed on uneven surfaces or slopes, ensuring the stability of the drill rig during operation.

  2. Drilling Rig: This includes the drill rod, propulsion mechanism, and rotary mechanism, all of which work together to achieve the drilling operation.

   3. Power Source: This can be an electric motor, internal combustion engine, or hydraulic power, providing the necessary driving force for the drill rig.

   4. Drilling Tools: This includes drill bits of varying types and sizes. The appropriate drilling tools should be selected based on the rock hardness and drilling requirements.

   Different models of outrigger anchor bolters may vary in their specific parameters and applicable scenarios. For example, the MQT-130/2.8 pneumatic anchor bolter is widely used in roadways with rock hardness ≤f10, particularly for anchor support operations in coal roadways. It can drill holes for roof anchors and cables, as well as mix and install resin-coated anchors and cables. Its features include small size, light weight, simple operation, and easy maintenance. Its geared pneumatic motor ensures stable operation and high reliability, and its new fiberglass-reinforced plastic (FRP) air leg design provides high reliability and a longer service life.

   For another example, the ZQS-65/1.6 pneumatic outrigger anchor bolter is suitable for coal roadways and semi-coal roadways with rock hardness ≤f8 for coal side anchor support operations. It can also drill holes for anchors and cables, as well as mix and install resin-coated anchors and cables. Its features include a small size, light weight, simple operation, and easy maintenance. The motor maintains a stable set point upon startup. The geared pneumatic motor provides stable operation and high reliability. The new fiberglass-reinforced plastic air leg design is safe, explosion-proof, and has a long service life. This drill has been patented.

   The price of an outrigger anchor drill varies depending on factors such as model, brand, and configuration. Market prices typically range from a few hundred to several thousand yuan. For more specific product information and pricing, it is recommended to contact the manufacturer or supplier.

   When using an outrigger anchor drill, be sure to follow relevant operating procedures and safety precautions to ensure safe and efficient operation. Regular maintenance and servicing is also essential to extend the life of the equipment.
