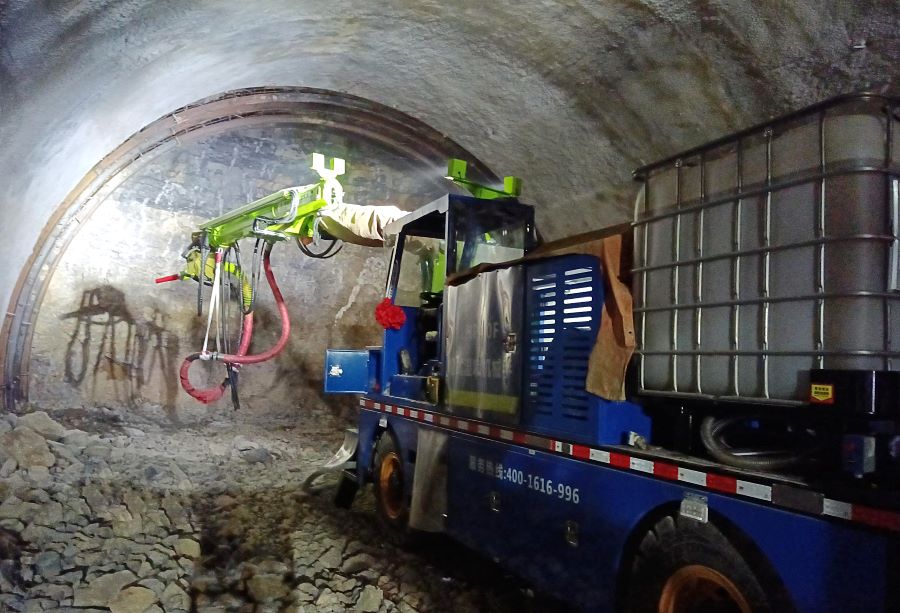

What is a Shotcrete Rig? A shotcrete rig is a specialized piece of construction equipment used to apply shotcrete—a type of concrete that is sprayed onto surfaces at high velocity. This method is widely used in tunnel construction, mining, slope stabilization, and underground engineering. The rig provides an efficient and safe way to reinforce rock surfaces and structural supports, especially in environments where traditional concrete pouring is not practical.

   1. How a Shotcrete Rig Works

   A typical shotcrete rig consists of several key components: a concrete pump, an air compressor, a mixing system, and a robotic spraying arm (manipulator). The process begins when concrete or a wet mix is pumped through a hose to the nozzle, where compressed air accelerates the material. The shotcrete is then sprayed onto the target surface, forming a dense and uniform concrete layer.

   2. The Two Primary Processes: Wet-Mix and Dry-Mix

   ①  Wet-Mix Shotcrete: The most common method today. Ready-mixed concrete with all its components (cement, aggregates, water, and often other admixtures) is delivered to the site and pumped to the nozzle. The accelerator is added at the nozzle just before spraying. This method offers a more consistent mix, less rebound (waste material), and lower dust generation.

   ②  Dry-Mix Shotcrete: The dry or damp pre-blended mix is fed into the machine and propelled pneumatically through the hose. Water is added at the nozzle. While it allows for easier transport over long distances and can achieve very high early strengths, it generally produces more dust and rebound, requiring highly skilled nozzlemen.

   3. Applications of Shotcrete Rigs

   ①  Tunnel and subway construction, where they are used to stabilize surrounding rock and form the initial lining.

   ②  Mining operations, where shotcrete strengthens underground walls and ceilings to prevent collapses.

   ③  Slope protection, helping to prevent landslides or erosion on steep terrain.

   ④  Repair and maintenance, such as reinforcing aging concrete structures or bridge abutments.

   Shotcrete rigs have revolutionized concrete application by combining efficiency, precision, and versatility. As construction projects grow more complex—with taller structures, deeper tunnels, and stricter safety standards—these machines will remain essential for delivering durable, cost-effective solutions.
