Products Description

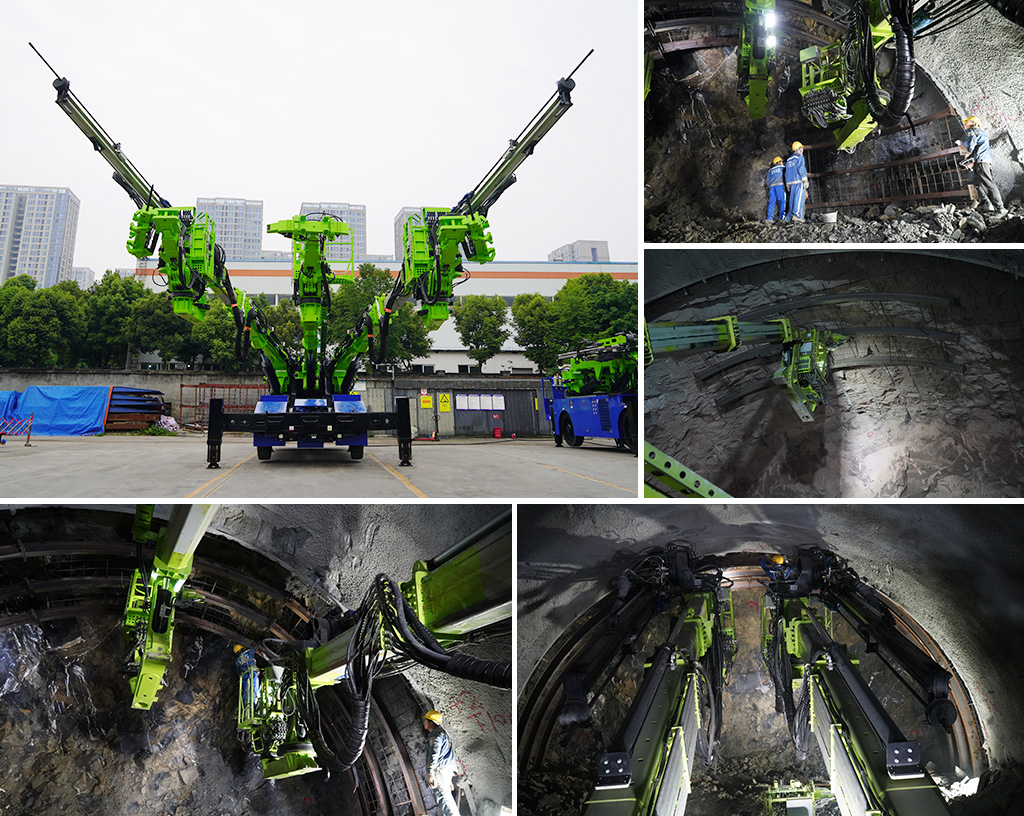

◆ Integrated Functions: The excavator has integrated functions for drilling and anchoring holes, erecting frames, loading explosives, installing anchor rods, grouting anchor rods (optional), and installing wire mesh.
◆ Operation: The excavator can be operated locally, remotely, or from a large operation platform. The rock drill satisfies high-angle vision, and the arch satisfies close-range vision.
◆ Extended Basket Space: The extended basket has a large space and is safer. After drilling holes, anchor rods and auxiliary explosives can be installed.

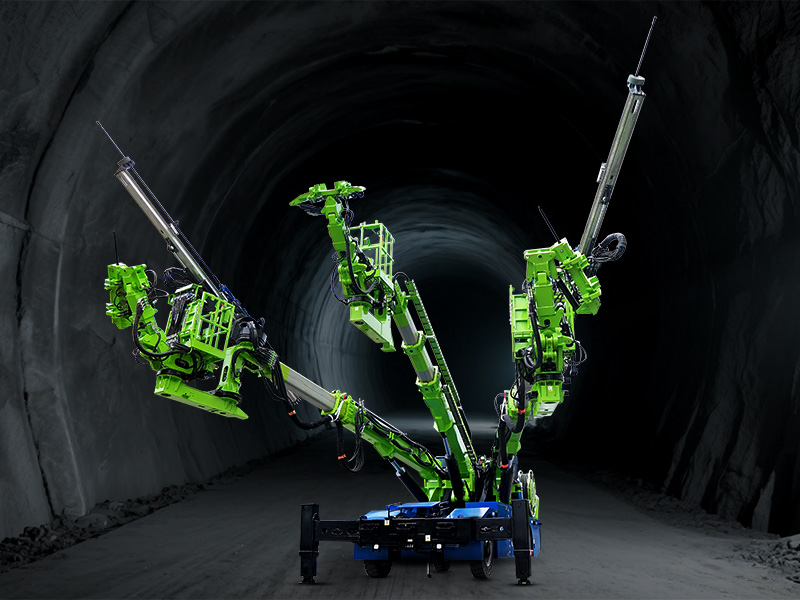

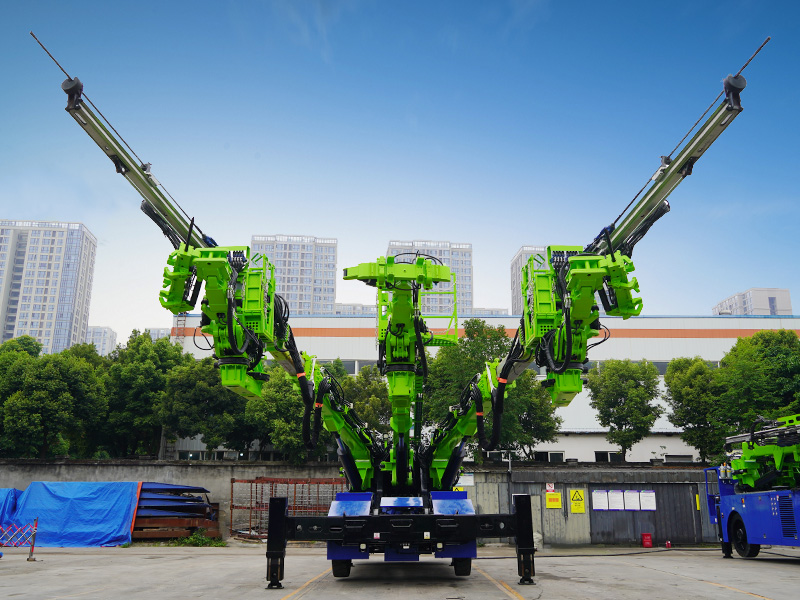

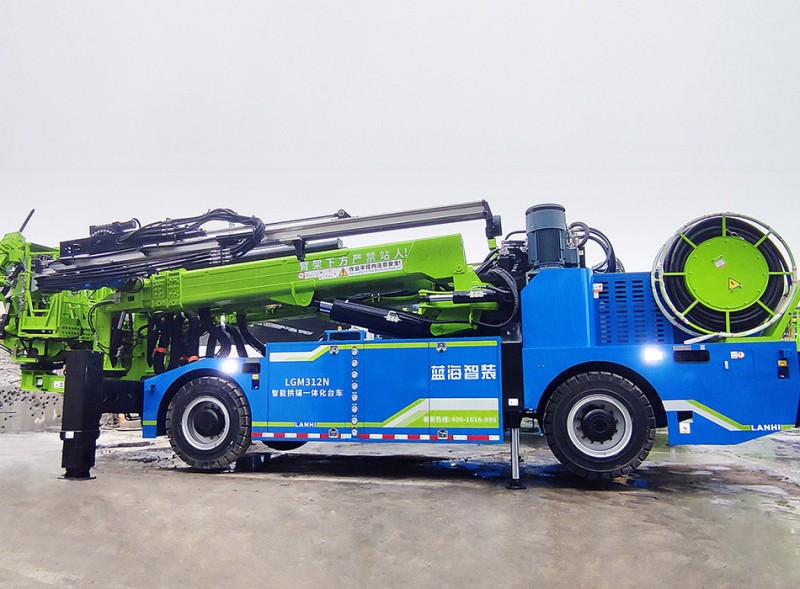

◆ Double Hyperbolic Rock Arm: The excavator has two double-triangular self-balancing rock arms with a maximum drilling depth of 5.2 meters.
◆ Double Arch Arm Frame: The double arch arm frame has a maximum lifting force of 2.5 tons, which meets the requirements for prefabricated arch frame installation and arch frame positioning and adjustment. The frame can be erected in about one hour.

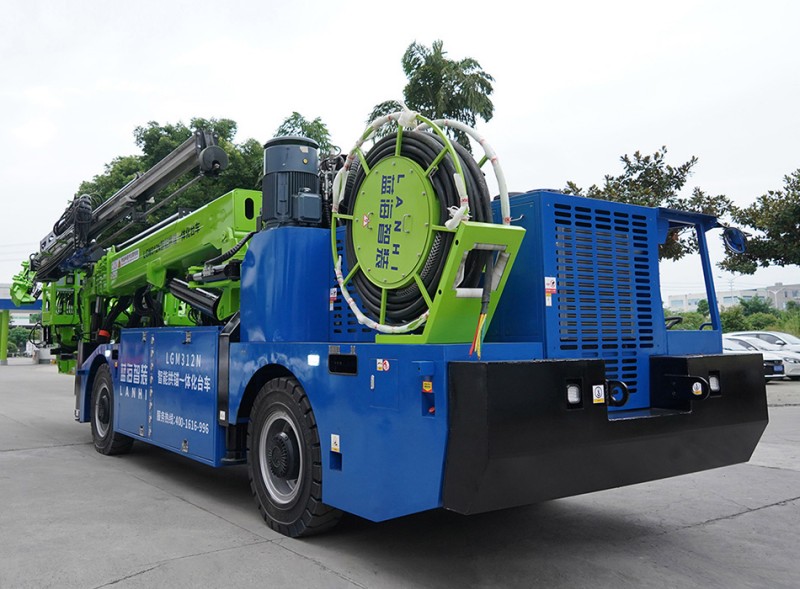

◆ Auxiliary Functions: The excavator has 3 welding machines and electric tools, which are easy to use and practical.
◆ Intelligent Functions (Optional): The excavator can be equipped with visualization functions for real-time positioning, monitoring, and troubleshooting of construction work. The system also includes remote monitoring and other cloud management functions.
Technical Parameter
| Transport dimensions (L × W × H) | 11360×3665×3355mm |
| Total weight | 38t |
| Engine power | 138.5kW (National IV) |
| Installed electrical power | 159kW |
| Operating mode | Electric construction + diesel-powered walking and emergency |
| Control mode | Wireless remote control + manual control |
| Operating voltage | 380V |
| Operating range (width × height) | 17×12m |
| Chassis form | Operating chassis |
| Driving mode | Bidirectional driving (front and rear dual cabs) |
| Driving and steering methods | Four-wheel drive, four-wheel steering |
| Minimum ground clearance | 380mm |
| Maximum grade | 36% |
| Turning radius | 15m (two wheels)/ 8m (four wheels) |
| Maximum speed | 15km/h |
| Approach angle/departure angle | 15.4°/15.7° |
| Arm support mode | Two stage telescopic |
| Arm support quantity | 3 |
| Hanging basket mode | Expandable |
| Number of hanging baskets | 3 |
| Number of grippers | 3 |
| Maximum lifting capacity of middle arm | 3t |
| Maximum lifting capacity of left and right arms | 1.5t |
| Number of rock drills | 2 |
| Power of rock drills | 18kW |
| Advance beam | 5590mm(6200/4990mm) |
| Drill Pipe | 4305mm(4915/3700mm) |
| Maximum drilling depth | 4m(4.6m/3.4m) |
| Drilling diameter | Φ41~Φ102mm |
| Discharge volume | 0.98m³/min |
| Discharge pressure | 0.8MPa |
| Flow rate | 16m³/h |
| Pressure | 20bar |
| Welding machines | 3 sets |
| Breaking hammers | 2 sets |
| Grouting system | Options |
| Three remote controls/one remote control | Unidirectional driving |
| Breaker | Front wheel steering |
| Electric Welding Machine | Combustible Gas Detector |
| Middle arm bearing capacity of 1.5t | Hole cleaning device |
| Grouting system |
