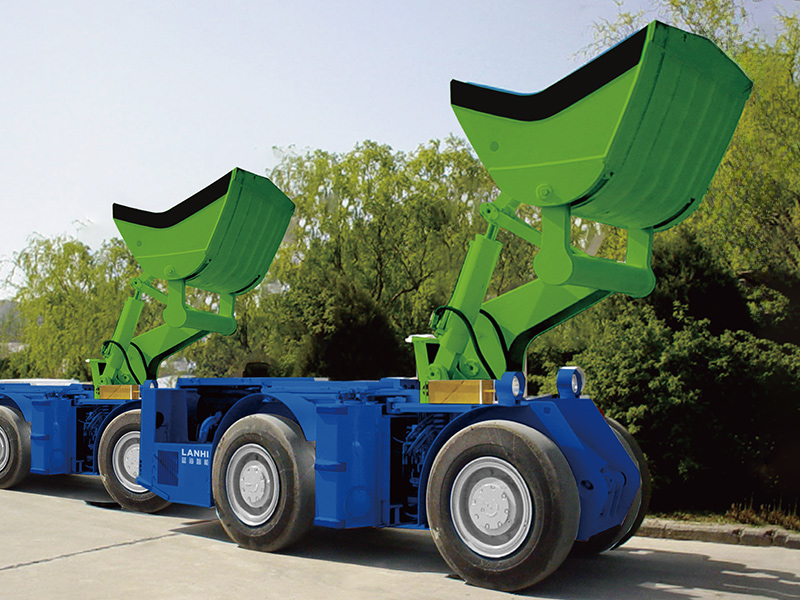

A Load-Haul-Dump (LHD) loader is a highly efficient underground mining machine designed for loading, hauling, and dumping materials such as ore, coal, or waste rock. It plays a crucial role in underground mining operations, particularly in narrow or confined tunnels where space is limited. With its compact structure, strong power, and high maneuverability, the LHD loader has become an essential piece of equipment in modern mining and tunneling industries.

   The LHD loader combines three key functions in one unit: loading, hauling, and dumping. It is typically equipped with a front-mounted bucket for scooping material, a powerful diesel or electric engine for traction, and an articulated frame for flexibility in tight underground spaces.

   ①  Loading – The operator uses the bucket to scoop up broken rock or ore from the muck pile.

   ②  Hauling – The machine transports the material over short or medium distances within the mine.

   ③  Dumping – At the dumping point, the operator raises and tilts the bucket to unload the material into a truck, ore pass, or crusher.

   allow it to move easily through narrow mine tunnels, providing excellent maneuverability even on uneven ground.

   1、Main Features and Advantages

   Compact and Low Profile: Designed to work in confined underground environments. Allow it to move easily through narrow mine tunnels, providing excellent maneuverability even on uneven ground.

   ①  High Efficiency: Combines loading, hauling, and dumping operations in one machine, reducing cycle time.

   ②  Powerful Performance: Equipped with high-torque engines or electric motors for heavy-duty operation.

   ③  Enhanced Safety: Modern LHDs include enclosed cabins, ergonomic controls, and automatic fire suppression systems.

   ④  Versatility: With interchangeable attachments (e.g., forks, breakers), LHDs can perform tasks beyond material handling, such as lifting equipment or breaking rock.

   2. Applications of  LHD loaders

   ①  Underground metal mining (such as gold, copper, and nickel mines)

   ②  Coal mining operations

   ③  Tunneling projects and hydropower construction

   ④  Ore transportation and loading in confined environments

   The Load-Haul-Dump (LHD) loader is an indispensable piece of underground mining equipment, combining strength, efficiency, and versatility. As the mining industry moves toward automation and electrification, modern LHD loaders continue to evolve with smart control systems, zero-emission power sources, and enhanced safety features — helping make underground mining safer, cleaner, and more productive than ever before.
